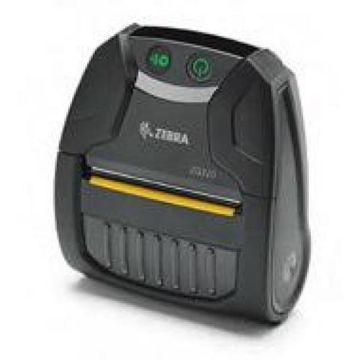

Zebra ZQ300 Serija

Operating System

Link-OS®

Print Method

Direct Thermal

Resolution

203 dpi/8 dots mm

Memory

128MB RAM, 256MB Flash (48 MB User Available)

Battery

Li-Ion 2280 mAh, 7.2V, PowerPrecision+

Maximum

ZQ310 printer: 48 mm/1.89 in.

Print Width

ZQ320 printer: 72 mm/2.83 in.

Maximum

Up to 4 ips (100 mm/s)

Print Speed

Media Sensors

Media Out, Media Door Open

Programming

CPCL, ZPL. The ZPL programming language ensures full

Languages

compatibility with many other Zebra printers

Cutter

Tear bar

Print Direction

Horizontal and vertical

ZQ310 printer:

58 mm ±0.75 mm/2.28 in. ±0.02 in.; spacers available to

Media Width

support 50.8 mm ±0.75 mm/2 in. ±0.02 in.

ZQ320 printer:

80 mm ± 0.75 mm/3.15 in. ±0.02 in.; spacers available to

support 76 mm ± 0.75 mm/3 in. ±0.02 in.

Maximum Roll

40 mm/1.57 in.

Outside Diameter

Media Holder

Drop-in fixed media width (clamshell)

Media Thickness

0.06 mm/0.0023 in. to 0.16 mm/0.0063 in.

Media Types

Direct thermal: receipt paper, linerless labels

Minimum Receipt

12.5 mm/0.49 in.

Length

Maximum Receipt

Unconstrained in line mode

Length

Label Counter

Odometer

OPERATING CHARACTERISTICS

Environmental

Operating Temperature: -15° to +50° C/5° to +122° F

Storage Temperature: -20° to 60° C/-4° to +140° F

Charging Temperature: 0° to 40°C/0° to +104° F

Agency Approvals

FCC Part 15 and EN 55022 Class B limits; FCC, IC, and

European Standards for Bluetooth and 802.11a/b/g/n; TÜV and

IEC 60950 standard for Safety; NOM, C-Tick, VCCI, S-Mark,

PSE, CCC, MII Bluetooth SIG-registered and Wi-Fi certified

Validation Testing

The ZQ300 series printers have been tested with

industry-leading applications to verify interoperability

and improve overall optimization with validated

terminals. Zebra Independent Software Vendor (ISV)

Partners create industry leading software solutions to

solve business problems. Zebra works closely with these

ISVs to integrate printing and other capabilities of Zebra

products. Zebra-validated applications can be found at

www.zebra.com/validation

COMMUNICATION AND INTERFACES CAPABILITIES

Bluetooth

BR/EDR, LE 4.0

USB 2.0

Client, Type- C™ connector

NFC

Passive NFC tag

Host OS Supported

Windows compatibility: (CE .NET, Pocket PC, Windows

Mobile 2002, Windows Mobile 2003 SE, Windows XP,

2000 and NT via Zebra Windows printer driver and/or our

Mobile SDK controls and other applications) Android 2.3,

4.0, 4.1, iOS 5, iOS 6, iOS 7, iOS 10

User Interface

LEDs

WLAN (OPTIONAL)

WLAN

802.11ac

WLAN Security

WEP, TKIP, AES encryption, WPA, WPA2, 801.1X (with WEP, WPA

or WPA2) EAP- FAST, EAP- TTLS, EAP-TLS, PEAP, LEAP

WLAN Features

802.11r, 802.11d, 802.11i, Simultaneous WAN & BT 4.0,

Supported

Fast roaming using Pairwise Master Key (PMK) caching,

Opportunistic Key Caching (OKC), or EAP Fast Session

resumption, Support for Ad Hoc mode

Internet Protocols

UDP/TCP, DHCP/BootP, FTP/Mirror, HTTP, SMTP / POP3,

over WLAN

Telnet, LPD, SNMP

BARCODE SYMBOLOGIES

Barcode Ratios

1.5:1, 2:1, 2.5:1, 3:1, 3.5:1

Linear Barcodes

Codabar (NW-7), Code 39, Code 93, Code 128, EAN-8,

EAN-13, 2 and 5 digit add-on, Interleaved 2-of-5, UCC/

EAN 128, UPC-A, UPC-E,2 and 5 digit add-on

2D Barcodes

2D Barcodes: Aztec Code, Data Matrix, GS1/DataBar™ (RSS)

family, MaxiCode, MicroPDF417, PDF417, QR Code, TLC 39

FONTS/GRAPHICS

CPCL/ZPL (Scalable)

Latin 9, Arabic, Cryillic, Hebrew, SourceCodePro,

NotoMono (CJK), Hans (CJK), Thai (Angsana)

CPCL (Bitmap)

Simplified CN: 24x24 Msung, 16x16 SimSun, Trad CN:

24x24 Mkai, 16x16 New Sans MT, Vietnamese: 16x16 Utah,

Japanese 16x16 MS Gothic

ZPL

Standard fonts: 25 bitmapped, smooth-scalable (CG

Triumvirate™ Bold Condensed), scalable SourceCodePro,

scalable NotoMono (CJK), scalable Hans (CJK), Optional

fonts: Downloadable bitmapped and scalable fonts,

*Contains UFST® from Agfa Monotype Corporation

Protection

Soft Cases

Carrying

Belt Clip (included), Shoulder Strap

Cable

USB charging or communication cable, type C to type A
