| Print Method |
Direct Thermal |
| Print Speed |
Up to 100 mm/sec (Receipt) Up to 80 mm/sec (Linerless) 12.5% pattern |
| Print Resolution |
203dpi |
| Print Width |
Up to 72mm |
| Sensor |
Paper End: Reflective sensor Paper Cover Open: Mechanical switch |
| Media Type |
Receipt, Label and Linerless (Optional) |
| Media Width |
80mm |
| Media Roll Diameter |
Up to 50 mm |
| Media Thickness |
0.07 ± 0.005 mm |
| Supply Method |
Easy paper loading |
| Dimensions (WxLxD) |
105.0 x 126.0 x 58.0 mm (4.14 x 4.97 x 2.29 inch) |
| Weight |
Including battery: 385 g (0.85 Ibs.) Including MSR: 405 g (0.9 Ibs.) Paper : 133 g (0.29 lbs.) |
| Battery |
7.4 V Li-ion, 2,600 mAh, Rechargeable Charging time: Up to 4.0 hrs |
| Memory |
64 Mbit SDRAM, 32 Mbit FlashROM |
| Interface Options |
USB V2.0 FS Serial Bluetooth V3.0 + EDR* WLAN 802.11b/g/n (Infrastructure, Ad-hoc, Wi-Fi Direct) - WEP40/104, WPA1/2(PSK, EAP) * Easy Bluetooth Pairing™ via NFC |
| Temperature |
Operating: -15 ~ 50℃ (5 ~ 122℉) Storage: -30 ~ 70℃ (-22 ~ 158℉) |
| Humidity |
Operating: 10 ~ 80% RH |
| Sealing |
IP43 (IP54 with protective case) |
| Drop Rate |
1.8 m (6 ft.) |
| Emulation |
BXL / POS |
| Drivers |
Windows Driver, OPOS Driver, JPOS Driver, Linux CUPS Driver |
| SDKs |
iOS SDK, Android SDK, Windows SDK |
| Character Size |
Font A: 12 × 24 Font B: 9 × 17 Font C: 9 × 24 KOR, CHN: 24 x 24 |
| Characters Per Line |
Font A: 48 Font B, C: 64 KOR, CHN: 24 |
| Character Sets |
Alphanumeric: 95 Expanded Graphics:128 × 33 page International: 32 |
| Graphics |
Supporting user-defined fonts, graphics, formats, layouts, and logos |
| Barcode |
1D: Codabar, Code 39, Code 93, Code 128, EAN-8, EAN-13, ITF, UPC-A, UPC-E 2D: Aztec, Data Matrix, GS1 Databar, MaxiCode, PDF417, QR code |
| Standard |
Belt Clip, Battery Pack, Battery Charger, Power Cord, Paper |
| Optional |
Belt Strap, Case, Protective Case, Shoulder Strap, Single Battery Cradle, Quad Battery Charger, Cigarette Lighter Charger, Serial/USB Cable, Cleaning Pen |

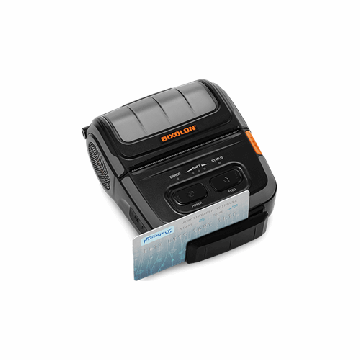

| MSR |
3 Track (T-DES/DUKPT(Optional)) |
